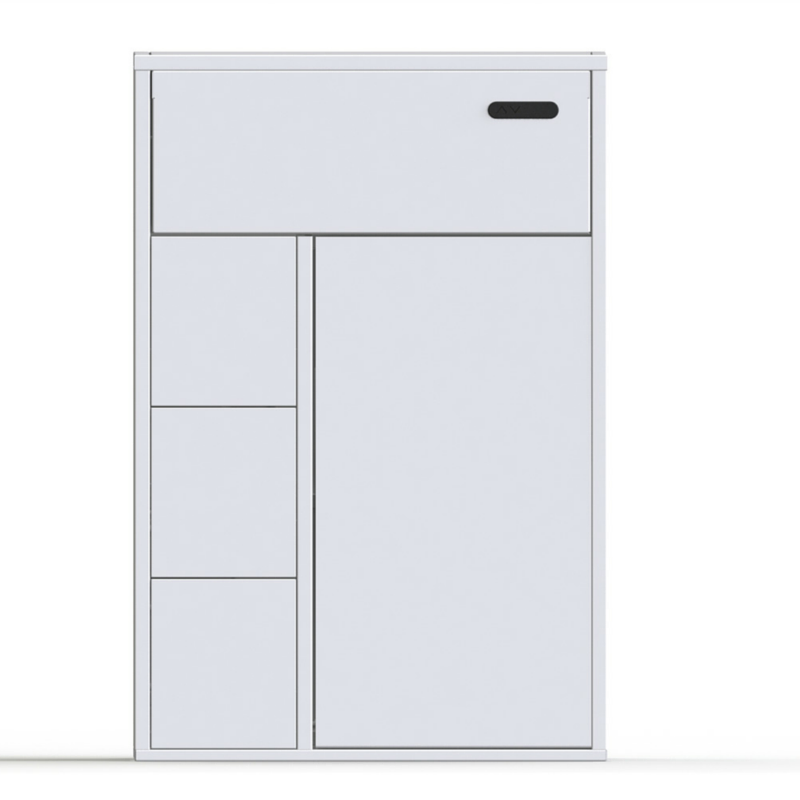

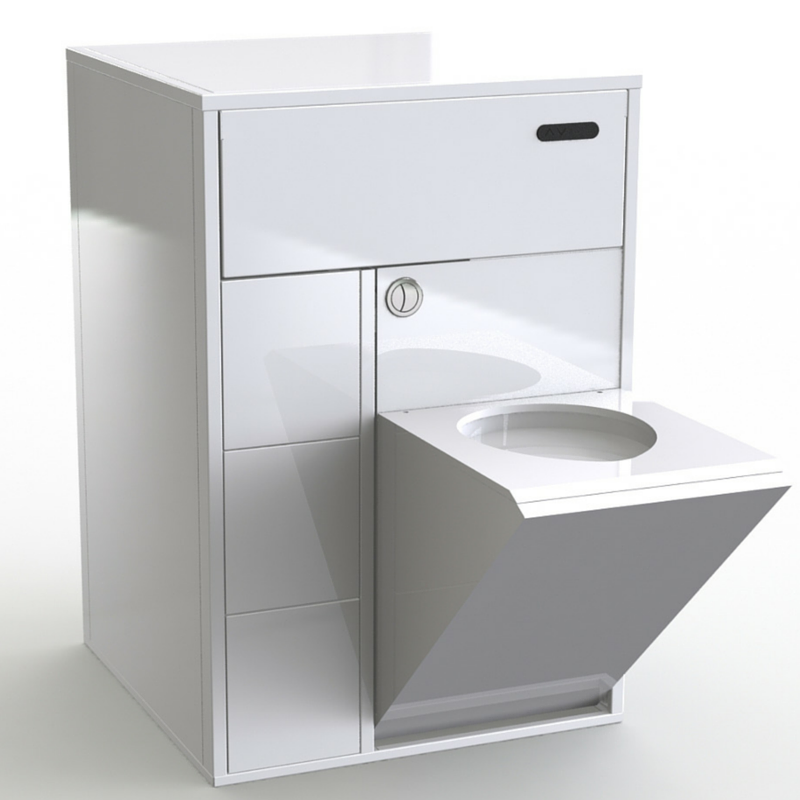

Size 600 W x 600 D x 900 mm H

UB1+S

Size 600 W x 600 D x 900 mm H

Installation can be flush with wall or under bench unit.

Single 80 mm waste connection through wall or floor at rear.

Cold water inlet connection

Unit includes hot water unit temperature control.

Unit includes three vanity drawers.

Toilet is remote and unit controlled.

Electric actuator drive projects toilet out and returns flush to wall.

Actuator has variable voltage control.

Basin has sensor controlled water spout.

Basin waste discharges to inbuilt water cistern mounted above toilet.

Dual flush cistern 9 litre capacity (6 L full flush + 3 L half flush).

Comfortable PVC toilet rim seat.

Optional back-up battery available as accessory.

Identical features described for UB1.

Flexible height included for shower connection in wall above or adjacent.

Outlet valve suitable for shower rose connection.

Larger water heater fitted.

Unit includes thermostatic water sensor control with timer.

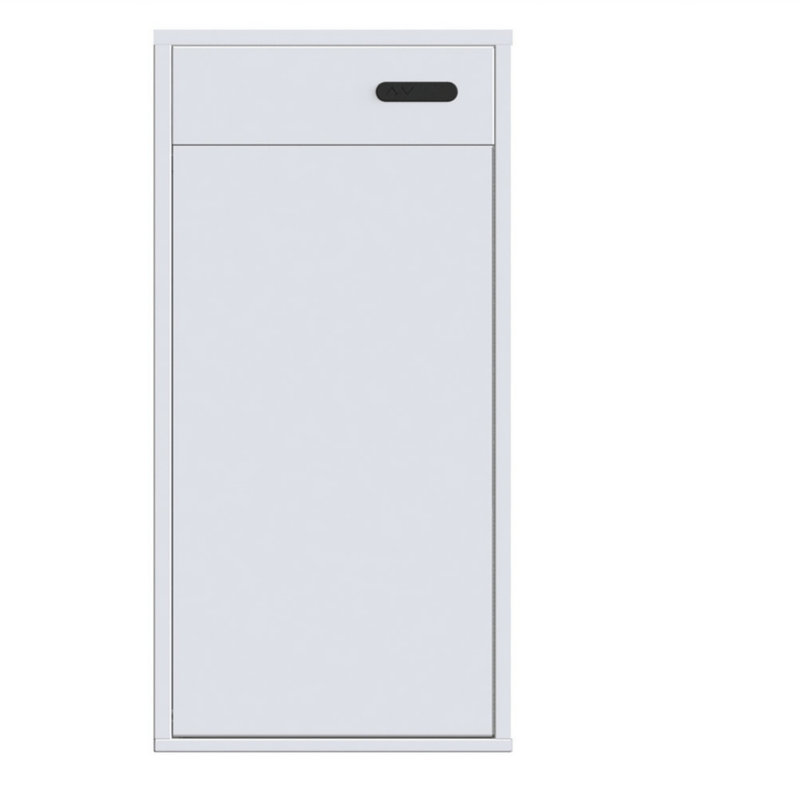

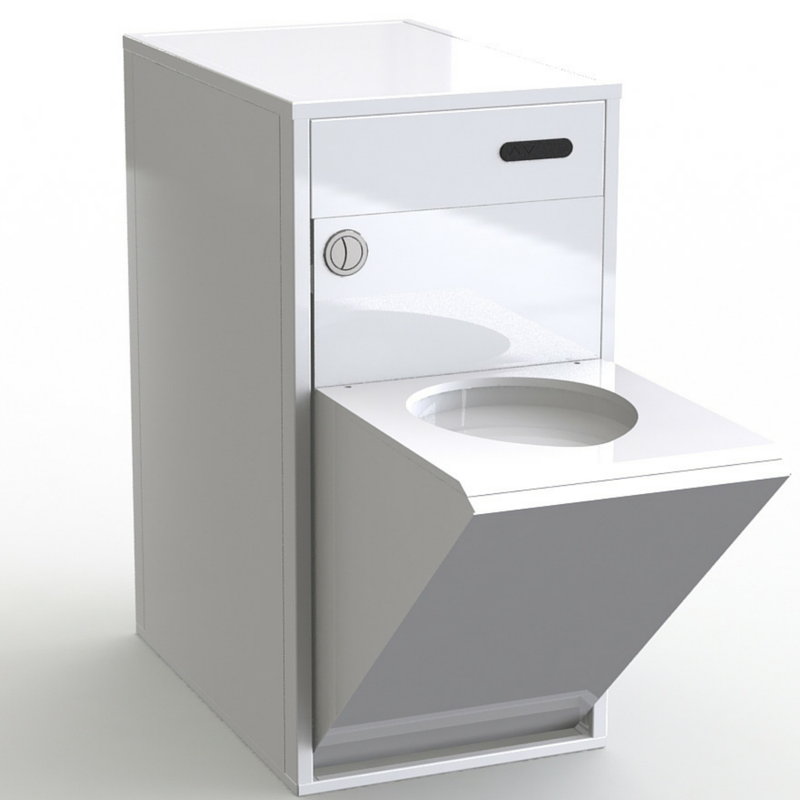

Size 390 W x 600 D x 760 mm H

Installation can be flush with wall or under bench unit.

Single 80 mm waste connection through wall or floor at rear.

Cold water inlet connection to cistern.

Toilet is remote and unit controlled.

Electric actuator drive projects toilet out and returns flush to wall.

Actuator has variable voltage control.

External Basin may discharge to cistern for water reuse.

Basin waste can discharges to inbuilt water cistern mounted above toilet.

Dual flush cistern 9 litre capacity (6 L full flush + 3 L half flush).

Comfortable PVC toilet rim seat.

Optional back-up battery available as accessory.
